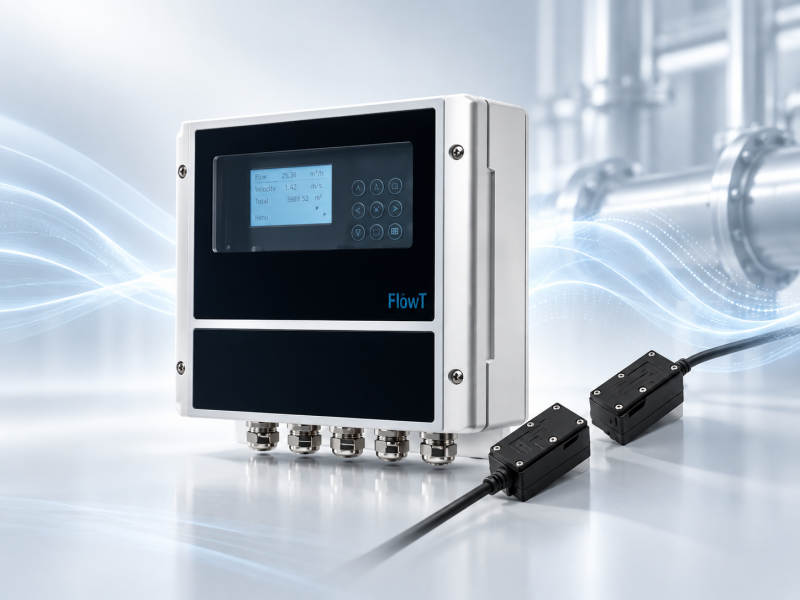

First confirm that non-intrusive ultrasonic measurement suits the process. Then match the transducer to the pipe and operating conditions rather than forcing a convenient sensor onto the application.
What Information Do You Need Before Selecting a Transducer?
- Actual pipe outside diameter or circumference
- Measured or verified wall thickness
- Pipe material and pipe schedule, if known
- Internal liner or coating material and thickness
- Liquid type, temperature, and expected aeration or solids
- Normal flow range and whether the pipe stays full
- Access around the pipe for V- or Z-method mounting
- Indoor, outdoor, wet, corrosive, or hazardous conditions
- Temporary, portable, or permanent measurement
These inputs determine the acoustic path, sensor spacing, temperature class, and feasible mounting arrangement. FlowT's ultrasonic flow meter piping requirements add useful checks for straight run and installation orientation.
Transducer Selection at a Glance
| Application Condition | What It Changes | Selection Direction |
|---|---|---|
| Small pipe | Short acoustic path and limited spacing | Use a small-pipe transducer or integrated solution approved for the actual OD |
| Large or thick-wall pipe | Longer, more attenuating path | Use the approved sensor family; evaluate Z-mount if required |
| Heavy liner or coating | Additional acoustic attenuation | Confirm liner thickness and bonding; lower frequency may be needed |
| High pipe-surface temperature | Limits sensor, cable, couplant, and mounting hardware | Select a dedicated high-temperature transducer |
| Old, corroded, or scaled pipe | Changes wall thickness and transmission | Measure wall thickness and verify signal at the proposed location |
| One-side access only | Restricts mounting geometry | V-method may be easier if the meter supports it |
| Weak V-method signal | Too much attenuation in the reflected path | Evaluate Z-method, another approved sensor, or another location |
1. Start With Actual Pipe OD and Wall Thickness
Nominal pipe size is not enough. The transmitter uses outside diameter and wall thickness to calculate the acoustic path and transducer spacing. Entering a nominal DN value as though it were an actual OD can therefore introduce error.
Measure the circumference or OD where possible. If wall thickness is uncertain on an older line, use an ultrasonic thickness gauge or a verified pipe specification. This matters when corrosion, scale, or previous repairs may have changed the original dimensions. The clamp-on ultrasonic flow meter selection guide explains why pipe data should be treated as a commissioning requirement rather than a catalog formality.
2. Match the Sensor to Pipe Material and Lining
Carbon steel, stainless steel, copper, PVC, HDPE, cast iron, FRP, and lined pipe do not transmit ultrasound identically. A liner adds another acoustic layer, and a poorly bonded liner can create an air gap that blocks the signal.
Endress+Hauser's official ultrasonic flow measurement guidance lists outside diameter, wall thickness, pipe material, coating, and fluid sound velocity among the key clamp-on inputs. It also notes that thick liners attenuate the signal and can require lower-frequency sensors.
For difficult pipe construction, sensor selection and site selection should be considered together. FlowT's article on installation effects on ultrasonic flow meter accuracy covers corrosion, lining, scale, surface preparation, and coupling in more detail.
3. Do Not Choose Frequency From Pipe Diameter Alone
A common rule of thumb says higher-frequency transducers suit smaller pipes and lower-frequency transducers suit larger pipes. That may be a useful starting point, but it is not a universal selection rule.
Sensor construction matters. Siemens' official SITRANS FS clamp-on sensor selection documentation shows one sensor family selected mainly by pipe diameter while a high-precision WideBeam family is selected by wall thickness. The lesson is simple: use the validated range for the specific transducer technology, not a generic MHz chart.
For clean, homogeneous liquids, the transit-time ultrasonic flow meter selection process is the relevant technology path.
4. Check the Transducer Temperature Rating
The transmitter may be mounted in a cool control room while the sensors sit directly on a hot pipe. Pipe-surface temperature therefore controls the allowable sensor, cable, couplant, and mounting system.
FlowT's published specifications show the practical difference. The FT221 portable ultrasonic flow meter covers clamp-on pipes from 1 to 48 inches (25 to 1200 mm); its standard transducer is listed for -40°C to 80°C, with an option to 130°C. The FT201 ultrasonic liquid flow meter covers 15 to 1200 mm, with a standard transducer range of -40°C to 75°C and optional higher-temperature transducers.
These are model-level references, not proof that every sensor set fits every pipe in the stated range. Final selection still depends on wall thickness, material, liquid, and mounting conditions.
5. Small Pipes Often Need a Dedicated Solution
Small-diameter pipe is not simply a scaled-down large-pipe installation. The acoustic path is shorter, spacing becomes more sensitive, and physically large sensors may be difficult to position accurately.
FlowT offers the FT211 small clamp-on ultrasonic flow meter and the integrated FT311 small-pipe clamp-on solution. The applicable pipe size, material, liquid, and temperature should still be confirmed before ordering.
6. Choose V- or Z-Method Together With the Transducer
In V-method installation, both transducers sit on the same side and the signal reflects from the opposite wall. In Z-method installation, the sensors are on opposite sides and the sound follows a more direct path.
V-method is convenient where one-side access matters. Z-method can help when the reflected path is too attenuating, especially on large or thick-wall pipe, but opposite-side alignment must be accurate. There is no universal diameter at which every meter should switch from V to Z. Use model guidance and field diagnostics. The detailed Z-method vs V-method comparison explains the tradeoffs.
7. Make Sure the Liquid Can Support Transit-Time Measurement
A better transducer cannot fix an unsuitable acoustic medium. Transit-time clamp-on systems generally perform best with a full pipe and a liquid that supports a stable ultrasonic path. Entrained gas, heavy solids, rapidly changing composition, or a partially filled pipe can weaken or interrupt the signal.
If process conditions are uncertain, confirm the liquid before changing sensor size or frequency. A portable meter can help with site evaluation, while liquids containing substantial bubbles or suspended solids may require a different ultrasonic principle.
8. If Two Transducers Fit, Use a Decision Hierarchy
Overlapping sensor ranges are common. When two transducers appear suitable, work through the application in this order:
- Preferred operating range: Favor the sensor whose recommended range best matches the actual pipe, not merely one whose maximum range includes it.
- Pipe construction: Consider wall thickness, material, liner, and surface condition.
- Temperature: Check continuous and startup temperatures against sensor and couplant limits.
- Mounting geometry: Confirm support for the required V-, Z-, or other approved arrangement.
- Field diagnostics: If uncertainty remains, test the signal on the real pipe before a permanent installation.
This hierarchy is more reliable than choosing from diameter alone.
9. Confirm Environmental Protection and Cable Requirements
A sensor that is acoustically suitable can still be the wrong field choice if its enclosure, cable, or connector does not match the site. For outdoor, washdown, submerged, or corrosive locations, confirm the transducer protection rating, cable length, connector sealing, mounting hardware, and any required hazardous-area approval. Do not treat an IP rating as a substitute for explosion-protection certification. For permanent installations, cable routing and long-term coupling stability should be reviewed before the final transducer is ordered.
10. Verify the Choice During Commissioning
Selection is not complete when the sensors are purchased. After installation, verify pipe data, calculated spacing, surface preparation, couplant, alignment, and mounting pressure. Then review the diagnostic values provided by the transmitter.
A stable displayed flow value does not by itself prove the installation is sound. Marginal signal quality or inconsistent transit-time diagnostics can indicate poor coupling, wrong pipe data, a bad location, or an unsuitable sensor arrangement. FlowT's clamp-on sensor installation notes and article on improving ultrasonic flow meter accuracy provide useful follow-up checks.
Illustrative Selection Example
Consider a large carbon-steel cooling-water header carrying clean water, with verified wall thickness and access to both sides. First confirm that the proposed meter and sensor family cover the measured OD and wall. If a correctly prepared V-method installation produces marginal diagnostics, evaluate the manufacturer-approved Z-method arrangement or another supported transducer set. If the pipe surface also runs hot, temperature rating must be resolved before the mounting choice is finalized.
This is a decision example, not a universal model recommendation. The final sensor still depends on measured pipe and process data.
What to Send FlowT for Transducer Selection
- Pipe outside diameter or circumference
- Wall thickness and pipe material
- Liner or coating material and thickness
- Liquid name and expected bubbles or solids
- Normal and maximum liquid and pipe-surface temperature
- Expected flow range
- Available straight run and nearby pumps, valves, elbows, or reducers
- Photos showing pipe access and surface condition
- Portable or permanent measurement requirement
- Required outputs, communication, and environmental protection
Providing these details before quotation reduces trial-and-error commissioning and makes the recommended transducer easier to verify against the real application.
Frequently Asked Questions
What transducer size should I use for a clamp-on ultrasonic flow meter?
Use the approved transducer range for the actual pipe OD and wall thickness. Nominal pipe size alone is not sufficient. Small pipes may require a dedicated small-pipe sensor or integrated solution.
Is a lower-frequency transducer always better for large pipes?
No. Lower frequency can help on long or attenuating acoustic paths, but the correct frequency also depends on sensor design, wall thickness, material, liner, liquid, and transmitter.
When should I switch from V-method to Z-method?
Consider Z-method when the meter documentation recommends it or when a correctly prepared V-method installation cannot provide acceptable diagnostics. Large diameter and thick walls can make Z-method useful, but access and alignment must also be practical.
Can the same transducer work on steel and plastic pipe?
Some sensor families support several pipe materials, but compatibility must be confirmed. Pipe material changes sound velocity and transmission behavior, while multilayer or lined pipes add further uncertainty.
How do I confirm the selected transducer after installation?
Verify pipe data and spacing, then check the transmitter's signal and transit-time diagnostics under stable process conditions. If diagnostics remain poor, reassess the location, coupling, mounting method, and sensor selection before trusting the flow result.
Conclusion
The right clamp-on ultrasonic flow meter transducer is selected from the complete acoustic system: pipe OD, wall thickness, material, liner, temperature, liquid condition, sensor technology, and mounting geometry. Pipe diameter is only the first filter.
For a reliable FlowT recommendation, provide verified pipe and process data before ordering and confirm the choice with field diagnostics during commissioning. That approach is more dependable than choosing a sensor from a generic diameter chart.
