Ultrasonic Flow Meter Accuracy and Flow Rate Correction Improvement

If you've spent any real time with ultrasonic flow meters, you already know the pitch: non-invasive, no moving parts, works on almost anything. And look, that's mostly true. But the accuracy conversation? That's where things get interesting-and occasionally frustrating. Because an ultrasonic meter that's accurate in a lab can behave quite differently when you bolt it onto a real pipeline with elbows, temperature swings, and whatever else your process throws at it.

This isn't meant to scare you off the technology. Ultrasonic meters remain one of the best options for many applications. The point is understanding what affects their accuracy and-more importantly-what you can actually do about it.

Transit-time ultrasonic flow meters work by sending acoustic pulses between two transducers-one upstream, one downstream. The pulse traveling with the flow arrives slightly faster than the one fighting against it. That time difference, we're talking nanoseconds here, gets converted into a flow velocity.

Simple enough on paper. The trouble starts when you realize that velocity measurement happens along a single path (or maybe a few paths in fancier meters), but what you actually care about is the average velocity across the entire pipe cross-section. The fluid doesn't move at the same speed everywhere. It's slower near the walls, faster in the middle. The relationship between what the meter sees and what's actually happening depends on something called the velocity profile-and that profile changes with Reynolds number, pipe roughness, upstream disturbances, and about a dozen other factors.

Let's be blunt about the main sources of error.

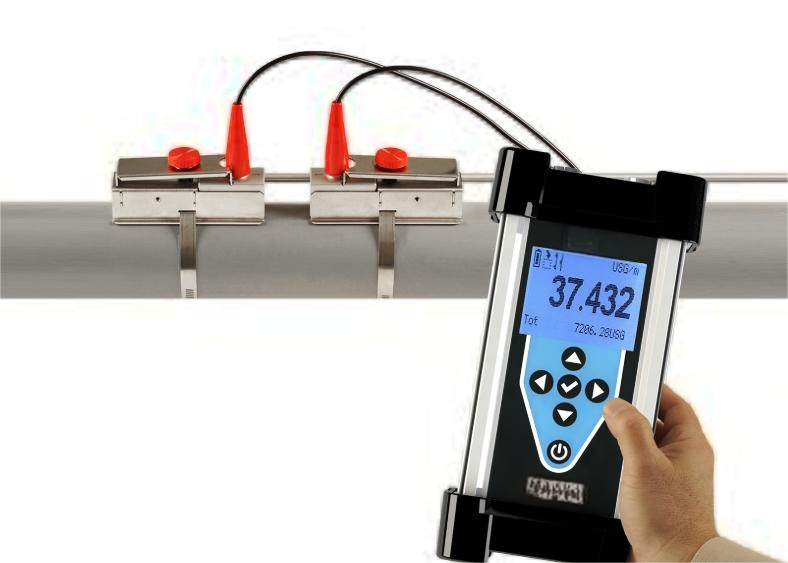

Ultrasonic Flow Meter Accuracy

Put an elbow upstream of your meter and you've just created asymmetric flow. The velocity distribution gets skewed, maybe swirling, and your single-path measurement now represents... what exactly? Research has shown errors up to 15% from upstream disturbances alone when you don't account for them. Multi-path meters help significantly-they sample velocity at several points across the pipe diameter and use weighted averages-but they're not magic. A badly disturbed profile can still trip them up.

Here's something that catches people off guard. The shape of your velocity profile isn't fixed-it changes with Reynolds number. At low flows (laminar regime, Re below about 2300), you get a parabolic profile. The center velocity might be twice the average. At high flows (turbulent, Re above 4000), the profile flattens out considerably; center velocity is maybe 1.1 to 1.2 times average.

What does this mean practically? The correction factor your meter applies at one flow rate might be wrong at another. Most manufacturers build in some compensation, but the assumptions behind it may not match your actual conditions.

Power-law velocity profiles have been used to model this for decades. Nikuradse's work from the 1930s-yes, that old-still forms the basis for many correction algorithms. The profile follows the equation u/u_max = (1 - r/R)^(1/n), where n varies with Reynolds number. When n is around 7, you're looking at a fairly flat turbulent profile. When n drops toward 4, things get more pointed. The correction factor for a single centerline path can swing from 0.75 to 0.95 depending on conditions.

Ultrasonic Flow Meter Accuracy

Rough pipes make the profile flatter. New smooth pipes versus corroded old ones can mean a 0.5 to 1% difference in readings over time-and you probably won't notice until you wonder why your meter drifted.

This deserves its own section because temperature affects ultrasonic measurement in ways that aren't immediately obvious.

First, the speed of sound in your fluid changes with temperature. In water, sound velocity increases roughly 2.4 m/s for every degree Celsius rise. The meter's transit time calculation assumes a certain sound velocity; get it wrong and your flow reading shifts. Modern meters include temperature sensors and compensation algorithms, and the good ones can reduce temperature-induced errors from 1.5% down to around 0.2%. But cheaper units with poor compensation? They'll wander.

Second-and this one's subtle-the transducers themselves change characteristics with temperature. Their electromechanical response shifts. The timing of when they actually fire versus when they claim to fire drifts. If your upstream and downstream transducers don't match perfectly (and they never do, even from the same manufacturing batch), you get a bias that varies with temperature. Some papers report transducer timing drift on the order of picoseconds per degree, which sounds trivial until you remember you're measuring nanosecond-scale differences.

Third, the pipe itself expands and contracts. Path length changes. Small effect, usually, but it accumulates with everything else.

Alright, enough problems. What can you do?

Get Your Installation Right

The boring answer, but the most impactful. Straight pipe runs matter. The old rule of thumb was 10-20 pipe diameters upstream of the meter, 5 downstream. That's reasonable for single-path meters; multi-path designs are more forgiving but still benefit from clean flow. If you can't achieve good straight runs, flow conditioners can help-tube bundles, perforated plates, vane-type devices. They chop up the disturbed profile and give it a chance to reorganize.

At 2 pipe diameters downstream from a disturbance, one study found ultrasonic meters could be off by 15% with 21% uncertainty. By 10 diameters, that shrinks dramatically. By 50 diameters, you're basically at ideal conditions. Most real installations fall somewhere in between, so the practical question becomes: how much error can you tolerate, and how much pipe length can you allocate?

Apply Correction Factors Properly

If you know the Reynolds number of your flow (and you should be able to calculate it from velocity, pipe diameter, and kinematic viscosity), you can apply profile correction factors. For a single diametral path, the correction factor K relates path-averaged velocity to cross-section-averaged velocity. K varies from maybe 0.75 in laminar flow to around 0.94 in fully developed turbulent flow.

Some newer meters do this automatically using built-in algorithms. Others give you access to adjust the factor manually. Still others assume a fixed value that's "close enough" for their expected operating range. Know which type you have.

For disturbed flows where the profile is asymmetric, bias-correcting multipliers have been developed. They depend on the type of disturbance (single elbow, double elbow out-of-plane, valve, etc.) and distance from it. These aren't perfect-they're based on averaged experimental data-but applying them beats ignoring the problem.

Multi-Path Configurations

Going from one ultrasonic path to four or five dramatically improves accuracy under real conditions. The paths are positioned at specific distances from the pipe center, weighted according to integration schemes (Gaussian quadrature and similar methods) that approximate true cross-sectional averaging.

British Gas proposed a 4-path geometry back in the day that became widely adopted in custody transfer applications. It achieves accuracy within 0.2% of actual flow regardless of profile orientation-at least when the profile follows expected patterns. Compare that to single-path meters that might swing 1.4% just from rotating the measurement plane relative to a disturbance. Big difference for fiscal metering.

Multi-path meters also provide built-in diagnostics. You can compare velocities from different paths. If path velocities don't match up in expected ratios, something's wrong with the flow profile, and you know to investigate.

Temperature Compensation Done Right

Don't rely on a single temperature sensor far from the measurement point. Measure temperature at or near the transducers. Use the measured temperature to calculate speed of sound if your meter doesn't do it automatically. For liquids with known properties, tables exist; for custom fluids, you may need characterization data.

For high-precision applications, transducer compensation gets more involved. The approach involves measuring the oscillation period of received signals and using both period and temperature as inputs to a two-point linear compensation algorithm. It sounds complicated because it is, but IC manufacturers have started building this into dedicated time-to-digital converter chips.

Clamp-On Specific Issues

Clamp-on meters add another layer of complexity: the pipe wall. Sound travels through the wall, refracts at interfaces, and picks up delays. Accurate wall thickness measurement is critical-use a separate thickness gauge, perpendicular to the surface, with coupling gel. Corrosion or scale deposits throw off both wall thickness and internal diameter. A 2016 study testing nine portable clamp-on meters found average errors from -12.8% to +1.2%, with most underestimating flow. Eight of nine meters read low.

The transit time difference you're trying to measure might be tens of nanoseconds. Extracting that from noisy signals requires good algorithms.

Zero-crossing detection is the traditional method: find where the received waveform crosses zero amplitude, use that timing. Simple and fast, but sensitive to noise and amplitude variations.

Cross-correlation offers better noise immunity. It compares the entire upstream and downstream waveforms, finding the time shift that maximizes their correlation. The math is heavier, but FPGAs handle it easily now. Some implementations achieve sub-nanosecond resolution.

More recently, deep learning approaches have shown promise for flow rate estimation under complex conditions. Train a neural network on CFD-simulated flow fields and their corresponding ultrasonic signatures; let it learn the patterns that humans might miss. Still experimental in commercial products, but the academic papers are encouraging.

Ultrasonic Flow Meter Accuracy

Factory calibration uses ideal conditions: long straight pipes, stable flow, known fluids, controlled temperature. Your installation has none of these. That doesn't make the calibration useless, but it does mean the stated accuracy (often ±0.5% to ±1% of reading) represents best-case performance.

In-situ calibration or verification against a reference meter helps establish real-world performance. Coriolis meters make excellent references if you can install one; they're immune to most of the profile effects that trouble ultrasonics. Some operations use a master ultrasonic meter with significantly higher accuracy (more paths, better processing) to check workhorse units.

Calibration at multiple flow rates across your expected operating range is worth the effort. The meter might be spot-on at 50% capacity but drift at 10% or 90%. Get data points, fit a correction curve if needed.

Honest talk: sometimes a different meter technology makes more sense. If you need 0.1% accuracy and can afford the cost, Coriolis meters win. They measure mass flow directly, ignore velocity profiles, and are largely unaffected by temperature. The downside is price, size, and pressure drop-but for custody transfer of high-value products, they pay for themselves.

For conductive liquids with highly disturbed flow, magnetic flowmeters might outperform ultrasonics. They're insensitive to profile shape as long as the profile is axisymmetric (which elbows and valves can disrupt, but less severely than with ultrasonics).

But for large pipes, gas applications, retrofit installations where you can't cut the pipe, or situations where pressure drop is unacceptable-ultrasonics often remain the only practical option. Know their limitations and work around them.

Ultrasonic flow meter accuracy in the real world depends on understanding the gap between laboratory conditions and your actual installation. Velocity profile effects, temperature variations, transducer characteristics, pipe conditions-they all contribute. The stated accuracy of ±1% might become ±3% or worse if you ignore these factors.

The good news: most of these issues have known solutions or at least known workarounds. Proper installation practices, appropriate correction factors, good temperature compensation, multi-path designs where budget allows, and realistic calibration under actual conditions can bring real-world performance much closer to theoretical limits.

Don't trust the spec sheet blindly. Understand what affects your meter, measure what you can, correct for what you know, and maintain appropriate uncertainty margins for what remains unknown. That's not pessimism-it's metrology.

And if someone asks whether your ultrasonic meter is accurate, the honest answer is: it depends. But now you know on what.
