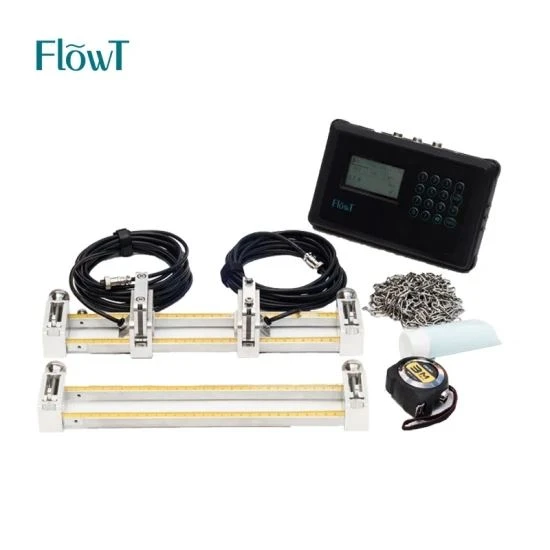

Battery-charged portable flow meter is a cutting-edge device that revolutionizes the way flow measurement is done. This innovative tool is designed to provide accurate and reliable flow measurements in a portable and convenient package.

ne of the key features of this portable flow meter is its battery charging capability. With a built-in rechargeable battery, users can easily power up the device and use it on the go without needing a power source. This makes it ideal for field work or any application where a power source is not readily available.

In addition to its portability, this flow meter also boasts high precision and accuracy. With advanced technology and sensors, it can provide highly accurate flow measurements, allowing users to make informed decisions based on reliable data.

Velocity	±0.03 ft/s ~ ±40 ft/s (±0.01 m/s~ ±12 m/s)
Accuracy	±1% of measured value
Pipe size	Clamp-on: 1″~48″(25mm~1200mm)
Fluid	Fluid Single medium liquid
Pipe material	Carbon steel,stainless steel,PVC and other compact material pipe

Function specifications

Outputs	Analog output: 4~20mA, Max 750 Ω. Modbus: RS485
SD card	16GB
Interval	1 ~ 99999 seconds
Key broad	Digital keys
Display	240*128 back lit LCD
Power supply	Rechargeable Lithium Battery Power,3000mAh (Continuous operation of main battery 16 hours).
Temperature	Transmitter: -40℃~60℃ Transducer: -40℃~80℃ (-40℃~80℃ is standard; -40℃~130℃ is an option)
Humidity	Up to 99% RH,non-condensing
